SW1017

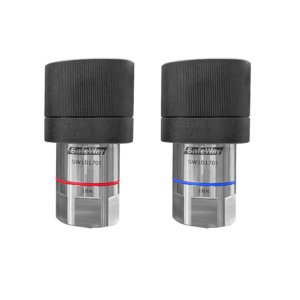

SafeWay’s OCP-LIQC series tread-to-connect, high-flow couplings are designed for the liquid cooling market, specifically in collaboration with the Open Compute Project (OCP) for data center products and solutions. Fully interchangeable with other OCP Liquid Cooling couplings, the SafeWay OCP-LIQC series couplings can connect and disconnect while pressurized up to 35 PSI, can be connected by hand, and are optimized for minimal restrictions.
The Open Compute Project is a collaborative community dedicated to designing and developing standardized solutions for data center infrastructure. Within this ecosystem, companies like SafeWay, have played a pivotal role in designing a standard spec to be used industry wide.
Product Highlights
- Connect/disconnect while pressurized up to 35 psi
- Dry break/Heavy-duty
- Ergonomically designed to connect by hand, 3 ft. lbs torque to mate
- Optimized for minimal flow restriction
- Colored O-rings to indicate direction
- Interoperable with other OCP Inspired™ and OCP Accepted™ LIQC couplings
- Valve type: O-Ring poppet
- All wetted components stainless or EPDM
Applications
Designed for liquid cooling applications, the SafeWay SW1071 series is fully interchangeable with other OCP LIQC couplings.
