SafeWay Large Quick Connector

SW1017

SafeWay’s OCP-LQC series tread-to-connect, high-flow couplings are designed for the liquid cooling market, specifically in collaboration with the Open Compute Project (OCP) for data center products and solutions. Fully interchangeable with other OCP Liquid Cooling couplings, the SafeWay OCP-LQC series couplings can connect and disconnect while pressurized up to 50 PSI, can be connected by hand and are optimized for minimal restrictions.

Download Data Sheet

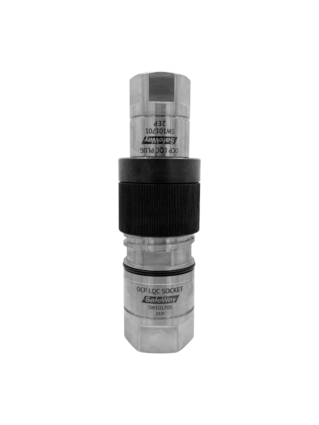

Complete Coupler
The Open Compute Project is a collaborative community dedicated to designing and developing standardized solutions for data center infrastructure. Within this ecosystem, companies like SafeWay, have played a pivotal role in designing a standard spec to be used industry wide.



Product Highlights

  • Connect/disconnect while pressurized up to 50 psi @140°F
  • Dry break and heavy-duty
  • Ergonomically designed to connect by hand, 3 ft. lbs torque to mate
  • Optimized for minimal flow restriction

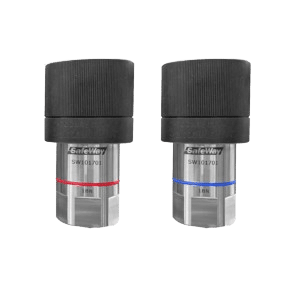

  • Colored O-rings available upon request
  • Interoperable with other OCP Inspired™ and OCP Accepted™ LQC couplings
  • Valve type: O-Ring poppet
  • All wetted components stainless or EPDM

Applications

Designed for liquid cooling applications, the SafeWay SW1071 series is fully interchangeable with other OCP LQC couplings.
