Engineers designing fluid transfer products face a common challenge: a component that works in CAD often requires more physical iterations to achieve precise functionality and can prove costly or impossible to manufacture at scale. Design for manufacturability (DFM) identifies and resolves these issues before production begins, preventing expensive tooling corrections and revision cycles.
Specialty Contract Mfg., a division of The Specialty Mfg. Co., provides design for manufacturing (DFM) solutions for fluid control components and fluidic components like valves, fittings, manifolds and fluid handling assemblies, turning concepts into production-ready designs that meet performance requirements while optimizing tooling costs, cycle times and more. Whether developing plastic parts in medical devices or metal components for heavy-duty applications, we bring over a century of manufacturing experience to your design.

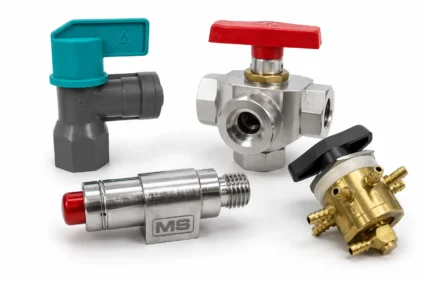

Key Aspects of DFM for Fluid Products
Our component design for the manufacturing process addresses the unique requirements of fluid handling applications where seal integrity, pressure ratings and media compatibility are essential. We focus on several critical areas:
- Material Selection and Compatibility.
- We evaluate your specified materials against manufacturing constraints and fluid media requirements. A valve body designed in 316 stainless steel might be machined more cost-effectively in brass with nickel plating, delivering equivalent corrosion resistance at a lower cost.
- Seal Design and Tolerance Stack-Up.
- Fluid components demand precise tolerances where seals mate to surfaces. We analyze tolerance stack-ups to ensure leak-free performance without specifying unnecessarily tight tolerances that drive up machining costs.
- Assembly and Testing Considerations.
- Fluid transfer products often require pressure testing, flow testing or leak detection. We design components with test port locations and inspection access to streamline production testing.
- Tooling Optimization.
- We identify elements that complicate tooling to avoid multi-cavity mold corrections that can cost thousands and delay production by weeks.
How It Works
Our DFM services integrate seamlessly with your timeline. Key steps in the process include:
- Design Review.
- Reviewing CAD files, performance specifications and production volume targets, we conduct a comprehensive manufacturability analysis and provide DFM solutions with cost and lead time implications for each option.
- Collaborative Refinement.
- Working directly with our engineers to evaluate trade-offs, we provide marked-up CAD models showing recommended changes in your native format.
- Production Validation.
- At this stage, we can validate the revised design through prototype production, making sure that improvements deliver actual manufacturing efficiency gains.
Examples in Fluid Handling
Our DFM expertise for fluid control and transfer allows us to meet a range of requirements.
Medical Device Manifolds
Medical device manifolds can require intricate fluid routing within compact footprints. DFM for complex medical devices can involve optimizing flow paths and reducing part count to improve assembly and reliability. This accelerates the manufacturing process and improves delivery schedules while adhering to the critical functional and quality requirements of the medical device industry.
Chemical Dispensing Valves
Chemical dispensing valves need to be built for leak-free performance to handle sensitive or corrosive fluids. DFM dictates selecting materials that can handle aggressive chemicals while being easy to mold or machine. Conducting tolerance analysis and making strategic design adjustments enables high-performance seal integrity and reliability in chemical dispensing valves while driving down overall manufacturing costs.

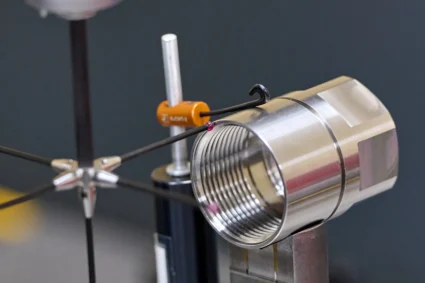

Pressure Regulators
Pressure regulators rely on specific internal cavities and flow paths to maintain proper fluid control. Key DFM considerations include selecting proper materials for sealing, optimizing body machining, managing tolerance stack-up and simplifying assembly of internal components like seats, poppets and springs.
DFM Solutions for Your Fluid Control & Transfer Products
Manufacturability problems discovered during production create costly delays. Redesigning tooling and revalidating components extends time-to-market while competitors move forward. Specialty Contract Mfg. is able to prevent these issues by applying expertise during the design phase, when changes are faster and less expensive to make. We have manufactured DFM parts for a range of fluid control applications and understand where designs can encounter production obstacles.
Ready to optimize your design for efficient manufacturing? Contact our team to discuss your project or share your CAD files and specifications for a detailed manufacturability assessment.
